Bluetooth 5.2 Wireless MCU RSL15

Features

Bluetooth Low Energy 5.2 Certified with key features：

• Up to 10 simultaneous connections
• Long Range (Coded PHY)
• 2 Mbit PHY (High Speed)
• Angle of Arrival (AoA) and Angle of Departure (AoD)
• Extended Advertising
• Backwards compatibility and support for earlier Bluetooth Low Energy specifications including 5.1, 5.0, 4.2, 4.1 and 4.0

Ultra−low power operation:

• Sleep Mode (GPIO Wakeup) @ 3 V VBAT: 36 nA
• Sleep Mode (Crystal Oscillator, RTC Timer Wakeup) @ 3 V VBAT: 57 nA
• Smart Sense Mode allows some digital and analog peripherals to remain active to monitor and acquire data from external sensors at a very low system−level power consumption
• Continuous ADC operation in Smart Sense Mode with wakeup on ADC threshold @ 3 V VBAT: 206 nA
• Peak Rx Current 1 Mbps @ 3 V VBAT: 2.7 mA
• Peak Tx Current 0 dBm Output Power @ 3 V VBAT: 4.3 mA
• Non−Connectable Advertising at 5 s Intervals @ 3 V VBAT: 1.1 μA (Average)
• Connectable Advertising at 5 s Intervals @ 3 V VBAT: 1.3 μA (Average)

Rx Sensitivity (BLE Mode, 1 Mbps): −96 dBm

Rx Sensitivity (BLE Mode, 2 Mbps): −94 dBm

Configurable Tx Power: −17 dBm to +6 dBm

Data Rate of 62.5 kbps to 2000 kbps

Arm Cortex−M33 processor clocked up to 48 MHz

• Cybersecurity Platform with Arm CryptoCell™−312 for End−to−end Product Security with Secure Boot, Root of Trust, Lifecycle Management, Secure Key Management, and Application and Data Security

Arm TrustZone® to enable secure execution zones

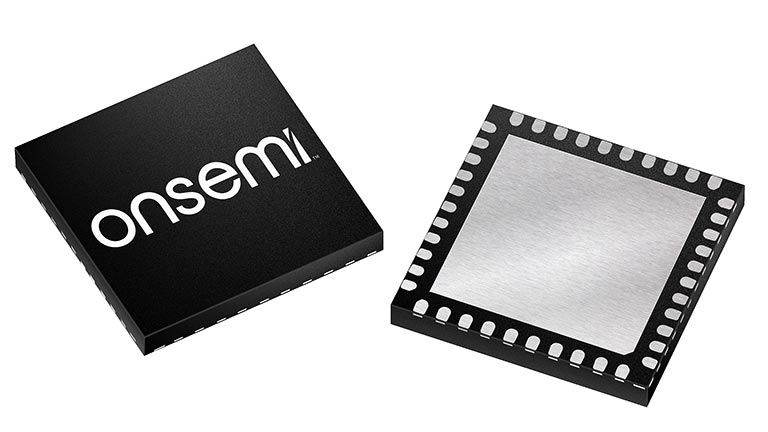

Two flash memory sizes available, 284 KB Flash (QFN only) or 512 KB Flash

80 KB RAM (64 KB user RAM, 16 KB RAM for Baseband)

Flexible Power Management:

• 1.2 V – 3.6 V VBAT.
• Directly connect 1.5 V silver−oxide or 3 V coin cells without any external active components

Two SPI ports with QSPI capability
