W2P
Secondary Wedge Lock for Deutsch DT Series 2 Position Receptacle Automotive Connectors Glass Filled PBT (Polybutylene Terephthalate) Green

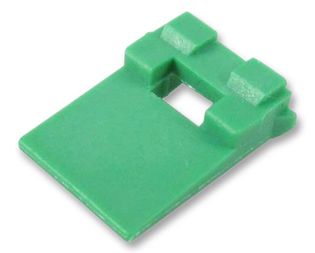

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Accessories, Other Connector Accessories
Avnet Manufacturer Part #: W2P
Secondary Manufacturer Part#: 77R3199
-
RoHS 10 Compliant -
Tariff Charges
The W2P is a Wedge Lock made of green PBT GF. This terminal position assurance type wedge lock features wire-to-wire connection and suitable for use for all DT04-2P receptacles.
- UL94-HB Flammability rating
- -55 to 125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled PBT (Polybutylene Terephthalate) | ||
| Green | ||
| DEUTSCH DT Series 2 Position Receptacle Automotive Connectors | ||
| -55 to 125 °C | ||
| 13.08 mm | ||
| 10.44 x 13.08 x 5.08 mm | ||
| 5.08 mm | ||
| 10.44 mm | ||
| Secondary Wedgelock |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694020 |
| Schedule B: | 8536694020 |
Factory Lead Time:
