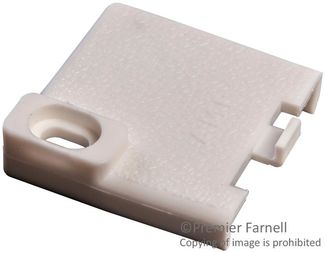

641776-2

These adapters are designed to anchor the cap housing strain reliefs to the housings and prevent the strain relief halves from “drawing in” when the screws are being torqued down to clamp the cable.

• Plug or Cap Housing Strain Reliefs
• 4 Circuit, In-Line
• Bundle Wire Range : .200 - .350, 5.08 - 8.89
• Pins and sockets can be intermixed in the same housing
• Positive polarization
• Rear cavity identification
• Contacts completely enclosed in housings
• Positive locking housings
• Insulation capability to .200 [5.08] diameter
• Removable, crimp snap-in contacts
• Low contact mating force
• Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes
• Contacts available with pretin or gold plating
• Dual locking lances provide optimum contact stability
• Panel mount or free-hanging
• Mate with Universal MATE-N-LOK II Housings
• Available in UL 94V-O flame retardant material. Meets the material requirements of table 25.1 of U.L. Standard 1410 (television receivers and video products)
• Not for interrupting current
• Harness to PC Board capability using pin or socket headers
