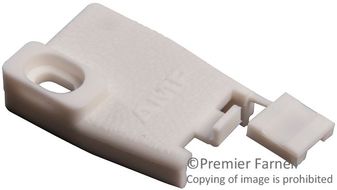

640713-1
Connector Accessories Strain Relief 2 POS Nylon White
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Accessories, Other Connector Accessories
Avnet Manufacturer Part #: 640713-1
Secondary Manufacturer Part#: 90F4807
-
RoHS 10 Compliant -
Tariff Charges
- Plug or Cap Housing Strain Reliefs
- 2 Circuit, In-Line
- Single Wire Range : .040 - .190, 1.02 - 4.83
- Pins and sockets can be intermixed in the same housing
- Positive polarization
- Rear cavity identification
- Contacts completely enclosed in housings
- Positive locking housings
- Insulation capability to .200 [5.08] diameter
- Removable, crimp snap-in contacts
- Low contact mating force
- Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes
- Contacts available with pretin or gold plating
- Dual locking lances provide optimum contact stability
- Panel mount or free-hanging
- Mate with Universal MATE-N-LOK II Housings
- Available in UL 94V-O flame retardant material. Meets the material requirements of table 25.1 of U.L. Standard 1410 (television receivers and video products)
- Not for interrupting current
- Harness to PC Board capability using pin or socket headers
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 33.02 mm | ||
| 24.38 x 33.02 x 8.38 mm | ||
| 8.38 mm | ||
| 24.38 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Factory Lead Time:
