5745172-1

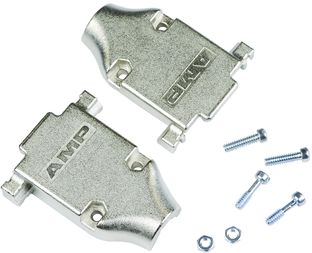

D Sub Backshell, Cable Clamp, AMPLIMITE, DA, 180°, Zinc Alloy Body
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Accessories, Other Connector Accessories
Avnet Manufacturer Part #: 5745172-1
Secondary Manufacturer Part#: 16M3316
-
RoHS 10 Compliant -
Tariff Charges
The 5745172-1 is a 15-position shielded D-sub Backshell, made of zinc alloy. The Amplimite backshell has nickel-plated bright shield and used with jacketed cable. The backshell has RFI/EMI shield allows cable to be fully prepared and terminated to the connector.
- 4-40 Thread size
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Zinc Alloy | ||
| AMPLIMITE 15 Position D-Subminiature Connectors | ||
| -55 to 85 to 105 °C | ||
| 48.51 mm | ||
| 39.24 x 48.51 x 15.75 mm | ||
| 15.75 mm | ||
| 39.24 mm | ||
| 5745172 | ||
| Cable Clamp Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Factory Lead Time:
