5745171-1

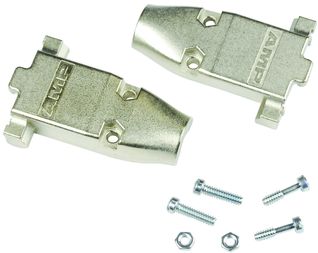

D Sub Backshell, Cable Clamp, AMPLIMITE, DE, 180°, Zinc Alloy Body
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Accessories, Other Connector Accessories
Avnet Manufacturer Part #: 5745171-1
Secondary Manufacturer Part#: 5745171-1
-
RoHS 10 Compliant -
Tariff Charges
The 5745171-1 is a 9-position shielded D-sub Backshell, made of zinc alloy. The Amplimite backshell has nickel-plated bright shield and used with jacketed cable. The backshell has RFI/EMI shield allows cable to be fully prepared and terminated to the connector.
- 4-40 Thread size
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Die-cast Zinc Alloy | ||
| AMPLIMITE Series D-Subminiature Connector | ||
| -55 to 105 °C | ||
| 48.51 mm | ||
| 30.86 x 48.51 x 15.74 mm mm | ||
| 15.74 mm | ||
| 30.86 mm | ||
| AMPLIMITE Series | ||
| Cable Clamp Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
