1658683-1
D Sub Connector Housing, 44 Ways, High Density D Sub, 3, AMPLIMITE HDP-22, Receptacle, Metal Body

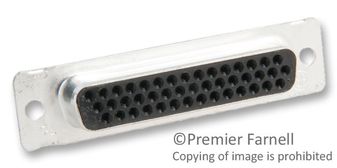

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, Other D-Sub Connectors
Avnet Manufacturer Part #: 1658683-1
Secondary Manufacturer Part#: 1658683-1
-
RoHS 10 Compliant -
Tariff Charges
The 1658683-1 is a 44-way 3-row Crimp Snap-in Receptacle with thermoplastic insert. This Amplimite HDP-22 series connector comes with tin-plated steel shell and nylon GF housing. It is intermateable with any size 22 Subminiature D connector dimensionally complying with MIL-C-24308 and capable of using numerous standard HD-20 cable clamps and mating hardware.
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Nylon|Carbon Steel | ||
| Straight | ||
| Receptacle | ||
| Cable Mount | ||
| 44 | ||
| 1 | ||
| -55 to 105 to 105 °C | ||
| 2.28 mm | ||
| 17.8 mm | ||
| 53.03 x 17.8 x 12.55 mm | ||
| 12.55 mm | ||
| 53.84 mm | ||
| 1658683 | ||
| DB | ||
| Crimp | ||
| Housing |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
