1658681-1

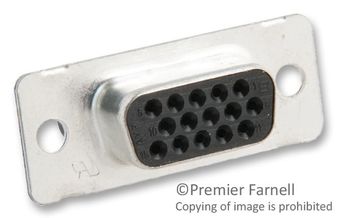

D Sub Connector Housing, HDP-22, 15 Ways, High Density D Sub, DE, AMPLIMITE HDP-22 Series
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, Other D-Sub Connectors
Avnet Manufacturer Part #: 1658681-1
Secondary Manufacturer Part#: 1658681-1
-
RoHS 10 Compliant -
Tariff Charges
The 1658681-1. is a 15-way Crimp Standard Snap-in Receptacle with glass filled nylon insert. This Amplimite HDP-22 series connector comes with tin-plated steel shell and shielding over-mould hardware. It is intermateable with any size 22 Subminiature D connector dimensionally complying with MIL-C-24308 and capable of using numerous standard HD-20 cable clamps and mating hardware.
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Nylon|Carbon Steel | ||
| Straight | ||
| Receptacle | ||
| Cable Mount | ||
| 15 | ||
| 1 | ||
| -55 to 105 °C | ||
| 2.28 mm | ||
| 17.9 mm | ||
| 30.81 x 17.9 x 12.54 mm mm | ||
| 12.54 mm | ||
| 30.81 mm | ||
| 1658681 | ||
| 1 | ||
| Crimp | ||
| Housing |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
