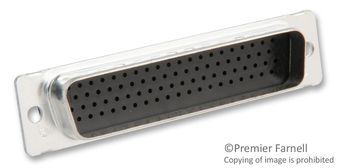

1658674-1
Conn Housing Plug 78 POS DD Shell Size 2.41mm Crimp ST Cable Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, D-Shaped Connectors, Other D-Sub Connectors
Avnet Manufacturer Part #: 1658674-1
Secondary Manufacturer Part#: 1658674-1
-
RoHS 10 Compliant -
Tariff Charges
- Plug with Grounding Indents, #5 Shell size
- Approximately 65% higher density than HD-20 connectors
- Lower cost, commercial version of the military approved Series 90 family
- Available with shielding overmold hardware and shielding enclosure kits
- Capable of using numerous standard HD-20 cable clamps and mating hardware
- Low cost, high performance, precision formed crimp contacts
- Intermateable with any size 22 Subminiature D connector dimensionally complying with MIL-C-24308
- Recognized under the Component Program of Underwriters Laboratories Inc., File No. E28476
- Listed under Underwriters Laboratories Inc., Standard 1863, Communication Circuit Accessories, File No. E81956
- Certified by Canadian Standards Association, File No. LR 1088108 (LR 7189-207)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Nylon|Carbon Steel | ||
| Straight | ||
| Plug | ||
| Black | ||
| Cable Mount | ||
| 78 | ||
| 1 | ||
| -55 to 105 to 105 °C | ||
| 2.41 mm | ||
| 17.8 mm | ||
| 66.95 x 17.8 x 15.37 mm | ||
| 15.37 mm | ||
| 66.95 mm | ||
| 1658674 | ||
| DD | ||
| Crimp | ||
| Housing |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
