0462-203-12141
Circular Contact Socket Crimp Straight Cable Mount
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Circular Contacts
Avnet Manufacturer Part #: 0462-203-12141
Secondary Manufacturer Part#: 91R1818
-
RoHS 10 Compliant -
Tariff Charges

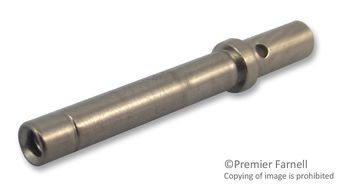

The 0462-203-12141 is a circular Socket Contact, made of copper alloy with nickel-plated finish, 12 to 14AWG wire size and mates with all DTP series pins.
- 25A Continuous current rating
- 75 to 70lbs Radial crimp tensile
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 2 to 3 mm² | ||
| Copper Alloy | ||
| Nickel | ||
| 12 | ||
| Power | ||
| DEUTSCH HD30 and HDP20 Series Circular Connectors | ||
| Socket | ||
| Nickel | ||
| 25 A | ||
| Cable Mount | ||
| -55 to 125 °C | ||
| 19.68 x 4.83 mm | ||
| No | ||
| Crimp | ||
| 14 to 12 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | PROJECTED FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
