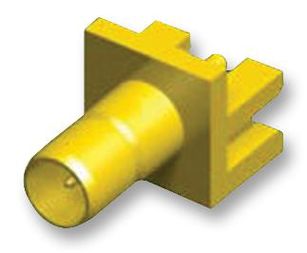

SMB7H-J-P-H-ST-EM1
RF / Coaxial Connector, SMB Coaxial, Straight Jack, Through Hole Vertical, 75 ohm, RG179, Brass
Click image to enlarge
Manufacturer:Samtec
Product Category:
RF & Wireless, RF / Coaxial Connectors & Accessories, RF / Coaxial Connectors
Avnet Manufacturer Part #: SMB7H-J-P-H-ST-EM1
Secondary Manufacturer Part#: SMB7H-J-P-H-ST-EM1
-
RoHS 10 Compliant -
Tariff Charges
The SMB7H-J-P-H-ST-EM1 is an Optimized SMB Jack with 30µinch (0.76µm) gold-plated brass contacts. PCB mounting, straight orientation and edge mount termination. The SMB7H series SMB jack is compatible with RF179 and GRF7H-C series connectors.
- 335Vrms Maximum voltage rating
- 1000Vrms Minimum dielectric withstanding voltage
- 1000M? Minimum insulation resistance
- Lead-free solderable
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Solder | ||
| Straight | ||
| Edge Mount | ||
| Brass | ||
| Gold |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536695050 |
Ships
in 1 bus. day
