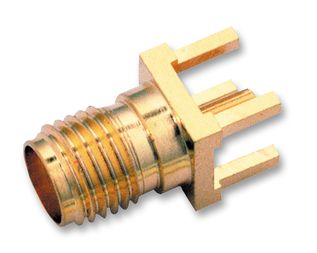

SMA-J-P-H-ST-TH1
RF / Coaxial Connector, SMA Coaxial, Straight Jack, Through Hole Vertical, 50 ohm
Click image to enlarge
Manufacturer:Samtec
Product Category:
RF & Wireless, RF / Coaxial Connectors & Accessories, RF / Coaxial Connectors
Avnet Manufacturer Part #: SMA-J-P-H-ST-TH1
Secondary Manufacturer Part#: SMA-J-P-H-ST-TH1
-
RoHS 10 Compliant -
Tariff Charges
SMA-J-P-H-ST-TH1 is a SMA series 50 ohm jack board connector. SMA is a subminiature interconnect with screw-type coupling. SMA is intermateable with 2.92mm and 3.50mm connectors and is ideal for size, performance, and cost-critical applications. Cable mates with RF047-A, RF086, RF23C, RF25S, RF402, RF405, RF180, RF280 series.
- Performance to 18GHz (26.5GHz options also available)
- 50 ohm impedance, through-hole termination
- PCB mount, straight orientation
- 30µ" (0.76µm) gold centre contact, 3µ"" (0.08µm) gold outer contact plating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Solder | ||
| Straight | ||
| Through Hole | ||
| Beryllium Copper | ||
| Gold | ||
| 20 GHz |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694010 |
| Schedule B: | 8536694040 |
