W3006

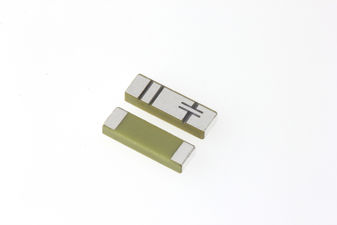

Chip Antenna, Dual Band, Linear, 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, Surface Mount

Click image to enlarge
W3006
  • W3006
Manufacturer:Pulse Electronics
Product Category: RF & Wireless, Antennas, Internal Antennas
Avnet Manufacturer Part #: W3006
Secondary Manufacturer Part#: W3006
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

W3006 is a 2.4-2.5/5.15-7.125GHz dual band ceramic chip antenna. Typical applications include IEEE 802.11a/b/g/n/x, WiFi-6E, 5GHz WLAN, 2.4GHz WLAN, 2.4GHz ISM band systems, 5GHz ISM band systems and ZigBee IEEE 802.15.4.

  • Peak gain of 2.2 / 5.2dBi
  • Efficiency of 60 / 70%
  • Fully SMD compatible
  • Compact size of W x L x H (10 x 3.2 x 1.5mm)

Technical Attributes

Find Similar Parts

 Description Value
50 Ohm

ECCN / UNSPSC / COO

Description Value
Country of Origin: RECOVERY FEE
ECCN: EAR99
HTSN: 8529109100
Schedule B: 8529109000
In Stock :  2000.0
Ships in 1 bus. day
Additional inventory
Factory Lead Time: 56 Weeks
Price for: Each
Quantity:
Min:1000  Mult:1000
USD $:
1000+
$1.18486
2000+
$1.16132
4000+
$1.14465
8000+
$1.12844
16000+
$1.096
