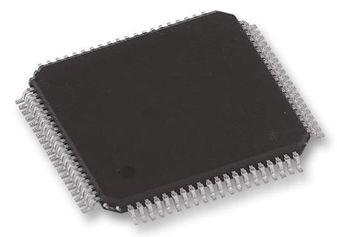

MC9S12E128VFUE

The MC9S12E128 is a 112/80/64 pin low cost general purpose MCU comprised of standard on-chip peripherals including a 16-bit central processing unit (HCS12 CPU), up to 128K bytes of Flash EEPROM, up to 8K bytes of RAM, three asynchronous serial communications interface modules (SCI), a serial peripheral interface (SPI), an Inter-IC Bus (IIC), three 4-channel 16-bit timer modules (TIM), a 6-channel 15-bit Pulse Modulator with Fault protection module (PMF), a 6-channel 8-bit Pulse Width Modulator (PWM), a 16-channel 10-bit analog-to-digital converter (ADC), and two 1-channel 8-bit digital-to-analog converters (DAC). The MC9S12E128 has full 16-bit data paths throughout. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements. In addition to the I/O ports available on each module, 16 dedicated I/O port bits are available with Wake-Up capability from STOP or WAIT mode. Furthermore, an on chip bandgap based voltage regulator (VREG) generates the internal digital supply voltage of 2.5V (VDD) from a 3.135V to 5.5V external supply range.

• HCS12 CPU
  • Upward compatible with M68HC11 instruction set
  • Interrupt stacking and programmer's model identical to M68HC11
  • Instruction queue
  • Enhanced indexed addressing
• Up to 16 KB of RAM
• Three asynchronous serial communications interface modules (SCI)
• Serial peripheral interface (SPI)
• Inter-IC bus (IIC)
• Three 4-channel 16-bit timer modules (TIM)
• 6-channel 15-bit pulse modulator with fault protection module (PMF)
• 6-channel 8-bit pulse width modulator (PWM)
• 16-channel 10-bit analog-to-digital converter (ADC)
• Two 1-channel 8-bit digital-to-analog converters (DAC)
• Module mapping control (MMC)
• Interrupt control (INT)
• Background debug module (BDM)
• Debugger (DBG12) including breakpoints and change-of-flow trace buffer
• Multiplexed external bus interface (MEBI)
• Wake-up interrupt inputs
  • Up to 16 port bits available for wak
