ADM00434

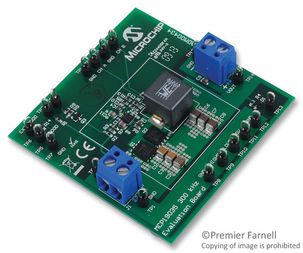

MCP19035 300 kHz Synchronous Buck Controller Evaluation Board
Click image to enlarge
Manufacturer:Microchip
Product Category:
Development Boards & Evaluation Kits, Analog Development Kits, Sensing
Avnet Manufacturer Part #: ADM00434
-
RoHS 10 Compliant -
Tariff Charges
- Input Voltage Range: 8V to 14V
- Output Voltage: 1.8V (can be adjusted by changing one resistor between 0.9V and 3.3V)
- Maximum Output Current: 15
- 91% typical efficiency at 1.8V/15A output and 12V input
- 300 kHz fixed switching frequency
- On-board High Performance Power MOSFET Transistors
- Overcurrent Protection for High and Low-Side MOSFETs
- Power Good (PGOOD) output for monitoring the output voltage quality
- Shutdown input for placing the converter in a low-power Standby mode
- Under Voltage Lockout (UVLO) with 4.5V and 3.9V (typical) thresholds
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| null | ||
| null | ||
| Eval Board MCP19035 | ||
| null | ||
| null |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8543906800 |
| Schedule B: | 8543909000 |
Factory Lead Time:
