W2H11A2208AT1A
SMD Multilayer Ceramic Capacitor, 22 pF, 100 V, 0805 [2012 Metric], -20%, +50%, C0G / NP0

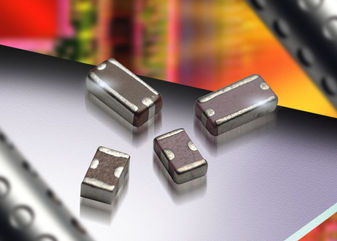

Click image to enlarge
Manufacturer:Kyocera AVX
Product Category:
Capacitors, Ceramic Capacitors, SMD MLCC Multilayer Ceramic Capacitors
Avnet Manufacturer Part #: W2H11A2208AT1A
Secondary Manufacturer Part#: W2H11A2208AT1A
-
RoHS 10 Compliant -
Tariff Charges
High current feedthru capacitors are designed as a broadband EMI filter that is specially designed to have high current handling capability. These capacitors have a capacitance range up to 100,000pF and a current rating up to 5A. These SMT feedthru filters offer an optimized frequency response with high attenuation across a wide RF spectrum due to optimized parallel and series inductances. These W2H feedthru filters can actually replace discrete L/C filter networks.
- Voltage Range: 25, 50, 100V in 0805 and 0612 case sizes
- Current rating: NP0/C0G up to 2A, X7R up to 5A
- Automotive Qualified (AEC-Q200): W2H
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 22 pF | ||
| -20%, +50% | ||
| 0805 [2012 Metric] | ||
| Standard Terminal | ||
| C0G / NP0 | ||
| 125 °C | ||
| -55 °C | ||
| 2 mm | ||
| W2H Series | ||
| 1.25 mm | ||
| -888 | ||
| -888 V | ||
| 100 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8532240020 |
| Schedule B: | 8532240020 |
Factory Lead Time:
