ABX00083

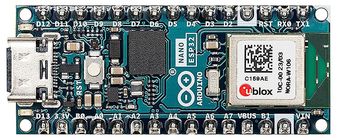

ABX00083 is an Arduino® Nano ESP32 board with headers. The Arduino® Nano ESP32 (with and without headers) is a Nano form factor board based on the ESP32-S3 (embedded in the NORA-W106-10B from u-blox®). This is the first Arduino board to be based fully on an ESP32, and features Wi-Fi® as well as Bluetooth® LE. The Nano ESP32 is compatible with the Arduino Cloud, and has support for MicroPython. It is an ideal board for getting started with IoT development.

• Nano form factor, board's compact size makes it perfect for embedding in standalone projects
• Harness power of ESP32-S3 MCU, IoT realm, W/ full Arduino support for wireless, BLE® connectivity
• Arduino and MicroPython support
• Arduino IoT Cloud compatible
• HID support: emulate human interface devices, such as keyboards or mice, over USB
• USB-C® connector
• Wi-Fi® and Bluetooth® connectivity
• UART, I2C and SPI communication
• 3.3V I/O voltage, 6 to 21V input voltage (nominal), 40mA source current per I/O Pins
• Up to 240MHz processor clock speed, 384KB ROM, 512KB SRAM and 128 Mbit (16MB) external flash memory
