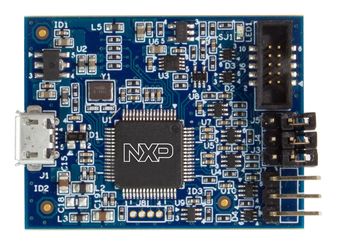

MCU-LINK

MCU-Link is a powerful and cost effective debug probe that can be used seamlessly with MCUXpresso IDE, and is also compatible with 3rd party IDEs that support CMSIS-DAP protocol. MCU-Link also includes a USB to UART bridge feature (VCOM) that can be used to provide a serial connection between the target MCU and a host computer. MCU-Link is based on the LPC55S69 microcontroller, and features a high-speed USB interface for high performance debug. MCU-Link is compatible with Windows 10, MacOS and Linux. A free utility from NXP provides an easy way to install firmware updates.

• LPC55S69 dual Arm Cortex-M33 microcontroller running at up to 150MHz
• High speed USB interface, CMSIS-DAP firmware, SWD target debug
• SWO trace/profiling I/O support
• Supports target debug for systems running from 1.2V to 5V
• Status LED for ease of use, USB to serial COM port (VCOM)
• Compatible with MCUXpresso IDE
• Compatible with tools/IDEs that support CMSIS-DAP protocol
• Compatible with MCUXpresso for VS Code
