Combined Gyro Sensor and Accelerometer

SCH16T Series （Industry）

The SCH16T series offers the best available single package 6DoF performance for industrial applications. The series includes two variants: SCH16T-K01 is suitable for measurements that require high performance from the gyroscope, and SCH16T-K10 is suitable for measurements that require a large range from the gyroscope. The series has excellent linearity and offset stability over full temperature and measurement range, allowing centimeter-level accuracy in machine dynamics and position sensing even in harsh environments.

Features

SCH16T series offers market leading low gyroscope noise levels and flexible digital output options for demanding applications.

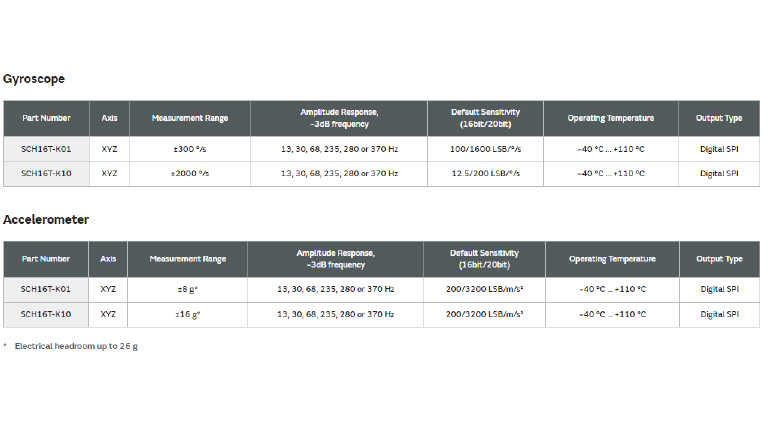

±2000 °/s (SCH16T-K10) or ±300 °/s (SCH16T-K01) angular rate measurement range
±16 g (SCH16T-K10) or ±8 g (SCH16T-K01) acceleration measurement range
Auxiliary digital accelerometer channel with up to ±26 g dynamic range
Gyroscope bias instability down to 0.3 °/h (SCH16T-K01) or 2 °/h (SCH16T-K10)
Gyroscope noise density level down to 0.4 m°/s/√Hz (SCH16T-K01) or 6 m°/s/√Hz (SCH16T-K10)
Options for output interpolation and decimation
Data ready output, timestamp index and SYNC input functions for clock domain synchronization
−40...110 °C operating temperature range
3.0...3.6 V supply voltage, 1.7…3.6 V I/O supply
SafeSPI v2.0 interface
20-bit and 16-bit output data, selectable via SPI frame
Extensive self-diagnostic features
12 mm × 14 mm × 3 mm (l × w × h) SOIC-24 inverted housing with <170 mm² footprint on PCB
Qualification based on AEC-Q100 standard
RoHS compliant robust SOIC plastic package suitable for lead free soldering process and SMD mounting
Proven capacitive 3D-MEMS technology
