Molex’s Custom Cable Creator and Off-the-Shelf cable assemblies help reduce your time to market by speeding up the design for your wire harness! Create, concept, and design using the Custom Cable Creator or prototype and buy in stock Off-the-Shelf (OTS) Point-to-Point Discrete Cable Assemblies. If the Off-the-Shelf isn’t exactly what you are seeking, the Custom Cable Creator can offer a range of options, such as single- or dual-ended, braided, taped, Heat Shink Tubing (HST), and Zip ties. We build custom cables to fit into many end applications such as power distribution units/boxes, power racks, engines, headlights, taillights, and radio wire harnesses.
- Custom Cable Creator
- Off-the-Shelf Cable Assemblies
- Resources

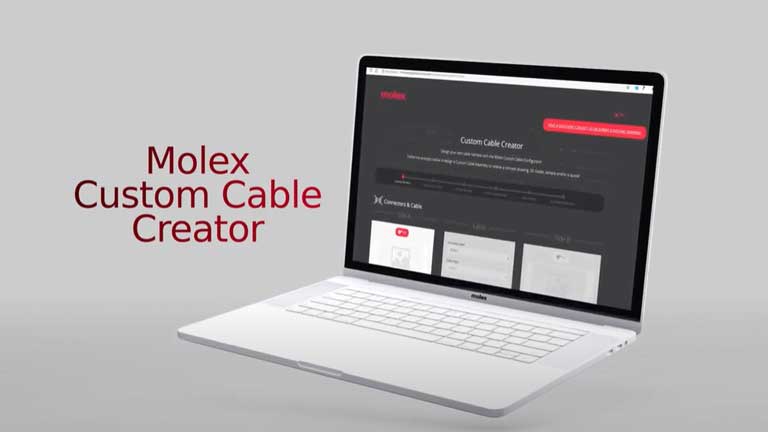

With the Molex Custom Cable Creator, you can start designing your custom cables today. The cable creator develops a custom cable solution including cables, connectors and accessories all in one place. You can choose from different connector families, circuit sizes, wire gauges, UL styles, cable lengths and more.
Features:
- Molex offers 3D models, drawings, samples and a prototype quote within 3 business days
- Select from over 300+ connectors, 9 wire gauges, 4 UL Types
- Molex’s Proprietary Pin Out configurator comes preloaded with pin outs for all connectors. No need to look up the connector drawing for pin outs or download the 3D model to determine the layout. In addition, the configurator will allow you to select individual pins or voids with an easy to use layout tool that will show an actual pin-to-pin map on the drawing and 3D model.
- Meets current industry and manufacturing standards including UL product certification, 2011/65/EU RoHS compliance, UL and FLRY wires available, ISO 14001, USO/TS 16949, DIN ISO 9001, ISO 13485
- Cable management features to include routing dressed with cable ties, heat-shrink tubing, cloth tape, expandable woven sleeves and labels.
Start configuring your custom cables here
Applications:
Automotive:
- Dashboard infotainment
- Lighting
- Steering wheel switches
- Top-column modules
Commercial Vehicle:
- Dash panel
- Lighting
- Steering wheel switches
- Top-column modules
Consumer:
- Fitness equipment
- Gaming machines
- Home appliance
- Home entertainment systems
- Home office
- Lighting
- Mobile devices
Data/Computing:
- Hard/optical disk drives
- High-end computing
- Personal computers
Home Appliance:
- Coffee makers
- Major appliances
- Rice cookers
- Vacuum cleaners
Medical:
- Diagnostic equipment
- Patient monitor
Telecommunications/Networking:
- Network communication equipment
Molex off-the-shelf Standard Cable Assemblies help solve tooling start-up costs by providing a completed assembly that meets the IPC-specification design as well as offers a 1-source solution, thus eliminating customers’ design requirements and need to find another vendor to build assemblies.
Features:

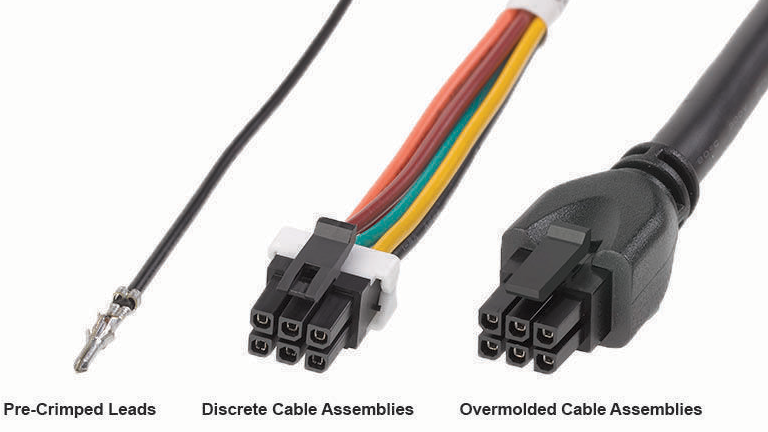

Discrete cable assemblies with a range of Molex Connectors available off-the-shelf
- Designed to support development and production programs
- Multi-color cables ensure correct connection
Meets current cable assembly industry standards
- Ensures high quality
- Meets current automotive industry standards
Meets 2011/65/EU RoHS Compliance
- Decreases engineering time and resources
UL 1061 and UL 1007 discrete wires
- Ready to use in electronic appliance applications
- Provide ease of design, prototyping and production
Pin-to-pin mapping from receptacle to PCB header
- Provides ready-to-use, plug-and-play connections
Custom assemblies for production also available
- Meet design needs after prototyping is complete
Applications
Commercial Vehicle:
- Dash panel
Consumer:
- Fitness equipment
- Gaming machines
- Home appliance
- Home security
- Home entertainment systems
- Home office
- Mobile devices
- Portable electronic devices
Data/Computing:
- Hard/optical disk drives
- High-end computing
- Personal computers
Medical:
- Diagnostic equipment
- Patient monitor
Custom Cable Creator
Design your own cable harness with the Molex Custom Cable Configurator.
Go to ConfiguratorFeatured Products
151340401
PicoBlade-to-PicoBlade Off-the-Shelf (OTS) Cable Assembly, Single Row, 100.00mm Length, 4 Circuits, Natural
451320401
Micro-Fit TPA-to-Micro-Fit TPA Off-the-Shelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, 4 Circuits, Black
2451320410
Micro-Fit 3.0-to-Micro-Fit 3.0 Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 1.0m Length, 4 Circuits, Black
2451350410
Mini-Fit Jr.-to-Mini-Fit Jr. Off-the-Shelf (OTS) Overmolded Cable Assembly, Dual Row, 1.0m Length, 4 Circuits, Black
