Infrared illumination plays a significant role in the broad field of security – incorporated into indoor and outdoor applications, for industrial home security systems. With a long heritage in developing infrared LEDs, ams OSRAM is the technology leader, offering different products to match the various requirements of each application area. Devices supporting up to 2W of optical power, there is a solution for every system setup. The portfolio comes in a variety of package sizes with many lens options, making it suitable for all kinds of system requirements (space-critical applications, easy clustering, narrow angle for direct illumination or wide angle for nearby objects or secondary optics). The choice of 850nm enables a higher camera sensitivity while the 940nm options are ideal for covert observation by eliminating the red glow visible to the human eye. Continuously expanding and improving the IR high power portfolio, ams OSRAM is prepared to stay the market leader in infrared illumination for industrial and home security.
Thin-film Chip Technology increase Efficiency of IR LEDs
With a typical optical radiant flux of up to 1360 milliwatts from an operating current of 1 Amp, its light output is 25 percent higher than other chips currently available on the market, which means that future infrared systems can be made even more energy efficient.
IR LEDs
The ams OSRAM IR LED portfolio comes with a variety of package sizes combined with many beam angles, making it compatible for all kinds of system requirements (space-critical applications, easy clustering, narrow angle for direct illumination or wide angle for nearby objects or secondary optics).
- OSLON® P1616
- OSLON® Black
- SYNIOS® P2720
OSLON® P1616 Series
New products available with flatter and rectangular radiation patterns

ams OSRAM OSLON® P1616 products are the smallest high power infrared LEDs in the product portfolio of OSRAM Opto Semiconductors. With a package size of only 1.6 x 1.6 mm² and a best-in-class intensity, the devices are the industry‘s smallest high power (near) infrared devices addressing different applications. The infrared high power emitter devices are specially designed for IR illumination applications, such as 2D Face Recognition, Eye Tracking or Security applications. Due to the low height, the products are the perfect fit for all space critical applications, while still providing high optical output, efficiency, and reliability.
Wavelengths: 850 nm, 940 nm
Lens Angles: ±65°, ±35°, Flatter radiation ±60°, Rectangular ±45° x ±70°
Package Footprint: 1.6mmx1.6mm

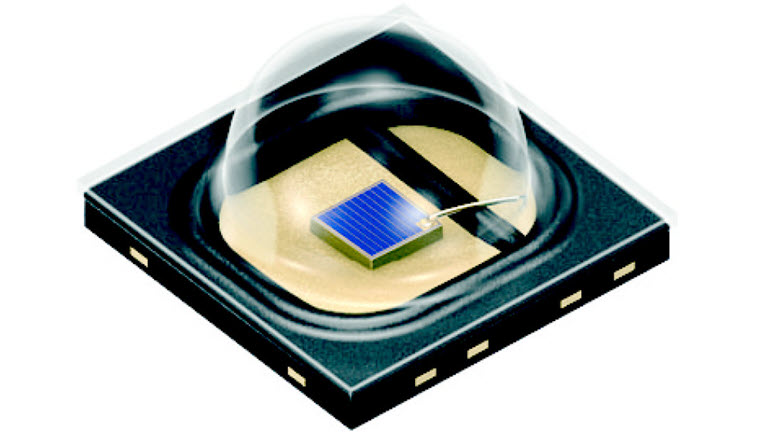

OSLON® Black Series

ams OSRAM OSLON® Black combines thermal stability with high performance and reliability in a compact black package. These Infrared Emitting Diodes (IREDs) have a metal lead frame, in conjunction with a tried and tested lens design, to be used wherever there may be large fluctuations in temperature and a large amount of light is needed from a small area. It is ideally suited to security applications, such as camera-surveillance of public spaces, company premises and entrances to banks and shopping centers.
Wavelengths: 850 nm, 940 nm
Lens Angles: ±25°, ±40°, ±75°

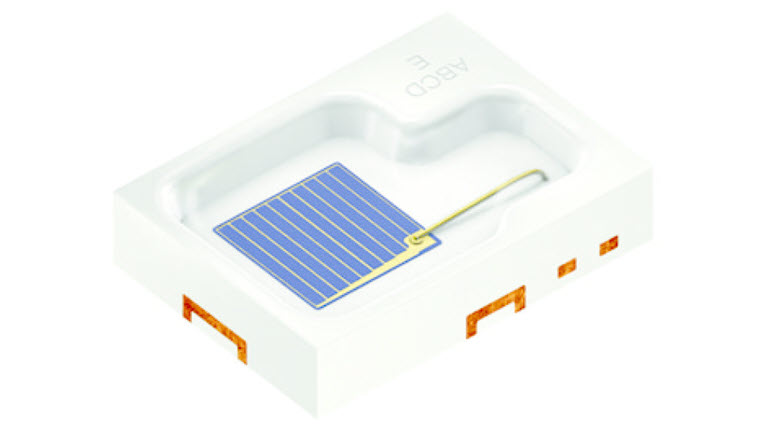

SYNIOS® P2720 Series

ams OSRAM SYNIOS P2720 Series Infrared Emitting Diodes (IREDs) bring together the advantages of the high-power IR illumination LED technology in an extremely compact SYNIOS P2720 package. These IREDs are available in the two well-known wavelengths, 850nm and 940nm. These IREDs provide compact sensing and are ideal for 2D facial recognition in daylight conditions if the camera chip has an 850nm blocking filter.
Wavelengths: 850 nm, 940 nm
Lens Angle: ±60° (Lambertian)
Package Footprint: 2.75mmx2.00mm
