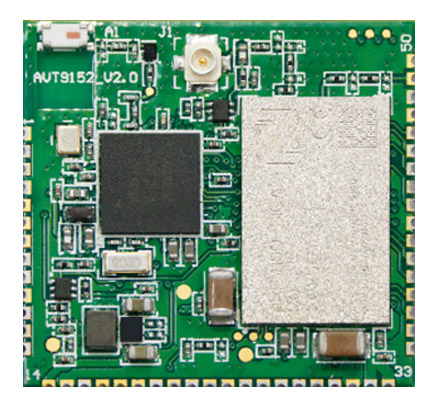

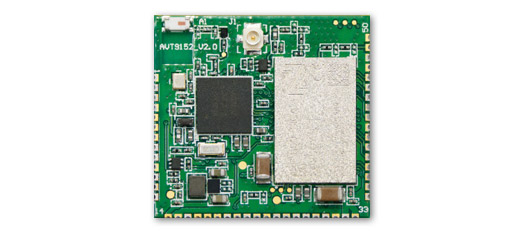

AVT9152 Module
The Avnet AVT9152 Module combines BLE, LTE and GPS technologies into a module targeting a broad range of IoT applications where low power and small size matters. Market ready, the module supports both LTE-M and NB-IOT technology and is certified to conform with FCC, CE, RCM and BQB.
The nRF52840 Bluetooth 5.2/Bluetooth LE advanced multiprotocol SoC features a 64MHz, 32-bit Arm® Cortex® M4 processor with floating point unit (FPU) which, alongside the nRF9160 SiP’s Arm Cortex-M33 processor, ensures the module can offer ample computational power to support a range of complex and processor-intensive IoT applications.
The module offers a high degree of flexibility and scalability for IoT product development while shortening time to market. Completing an IoT design can be as straightforward as connecting a power source, sensors and an antenna to the module.
Features
- nRF91 with LTE-M/NB-IoT global carrier certification
- BLE for short range communication
- Support power safe mode, PSM and eDRX
- ARM® TrustZone® security isolation
- OTA support on both nRF91 and nRF52
- Rich in peripherals support – UART, SPI, I2C, ADC, NFC, USB and GPIOs
- Flexible LTE and GPS antenna options
- AT commands modem architecture supporting UDP/TCP protocols
- Two powerful processors dedicated for application
- 3V@200mA power supply to the external
Benefits
- Global market ready
- Suitable for battery operated devices
- Future proof with OTA feature
- High degree of flexibility and scalability
- Shortened time-to-market for end-product
- Ease of cloud connection with SDK support, end-to-end connection ready
The AVT9152 Module is no longer in production.
Specifications
Cellular IoT (nRF9160)
- 3GPP R13 Cat-M1 & NB1 compliant
- 3GPP R14 NB1 & NB2 compliant
- Output power: -40dBm to 23 dBm
- -108 dBm sensitivity (LTE-M)
- -114 dBm sensitivity (CAT-NB1/NB2)
- GPS antenna port for active/passive antenna
- ARM® Cortex® -M33
- ARM® TrustZone®
- IPv4, IPv6 stack
- 1 MB flash and 256 kB RAM
- Supports SIM or eSIM
BLE (nRF52840)
- BT5.0
- Output power: -20dBm to +8dBm
- -95 dBm sensitivity (1Mbps BLE mode)
- On-board chip antenna for BLE
- ARM® Cortex®-M4
- ARM® TrustZone®
- 1 MB flash and 256 kB RAM
- NFC
- USB 2.0
General
- Up to 22 GPIOs
- Up to 8 ADC Inputs
- SPI x 2
- I2C x 2
- UART x 2
- Operating voltage: 3.2 to 5V
- Operating temperature: -40 to 85°C
- 26 x 28 x 3 mm
- RoHS compliant
AVT9152 Qualification and Certification Information
AVT9152 is certified to conform with FCC, CE, RCM and BQB
FCC ID: 2AW4N00AVT9152MOD00
Contains FCC ID: 2ANPO00NRF9160
BQB Declaration ID: D051401
- Technical Documents
AVT9152 DEMO Repository
This repository contains the following materials:
- demo application source code and zephyr board files
- pre-compiled hex
- sample binaries for FOTA testing
- some documentation
For more information about the materials included, please refer to the AVT9152 EVB Software Guide in the docs folder.
