HHV-25JT-52-4M7
Through Hole Resistor, 4.7 Mohm, HHV Series, 250 mW, ± 5%, Axial Leaded, 1.6 kV, Metal Glazed Film

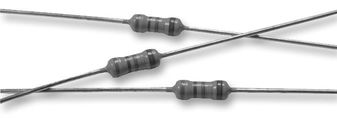

Click image to enlarge
Manufacturer:YAGEO
Product Category:
Resistors, Through Hole Resistors
Avnet Manufacturer Part #: HHV-25JT-52-4M7
Secondary Manufacturer Part#: HHV-25JT-52-4M7
-
RoHS 10 Compliant -
Tariff Charges
The HHV Series High Voltage & High Ohmic Resistors are made of metal glaze film, with tinned connecting leads of electrolytic copper welded to the end-caps. The resistors are coated with layers of pink color lacquer.
- Power Rating 1/4W, 1/2W, 1W, 2W, 3W
- Resistance Tolerance ±1%, ±5%
- T.C.R. ±200ppm/°C
- Flameproof Multi-layer Coating Meets UL-94V-0
- Flameproof Feature Meets Overload Test UL-1412
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 155 °C | ||
| -55 °C | ||
| 250 mW | ||
| 2.4 mm | ||
| 6.3 mm | ||
| HHV Series | ||
| 6.3 | ||
| 4.7 MOhm | ||
| ± 5% | ||
| Axial Leaded | ||
| Metal Glazed Film | ||
| High Voltage, High Ohmic | ||
| ± 200ppm/°C ppm/°C | ||
| 1.6 kV |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533404000 |
| Schedule B: | 8533400080 |
