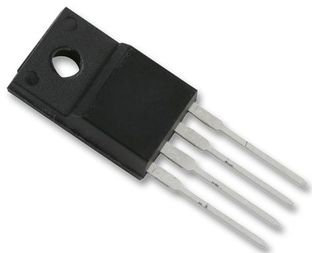

Y092650R0000T9L

The model VPR221 offer low TCR, high stability, tight tolerance and fast response time in a small, molded resistor. Model VPR220 is a 2 lead device. Model VPR221 is a 4 lead Kelvin connected device. The 4 leaded version is highly recommended for precision applications requiring ohmic values of 100R or less.

• Temperature coefficient of resistance (TCR): ± 2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref.)
• Tolerance: to ± 0.01 %
• Electrostatic discharge (ESD): above 25 000 V
• Load life stability: ± 0.005 % (25 °C, 2000 h at rated power)
• Resistance range: 0.5 O to 500 O
• Power rating: 8 W chassis mounted (per MIL-PRF-39009)
• Non-inductive, non-capacitive design
• Rise time: 1 ns without ringing
• Current noise: < - 40 dB
• Voltage coefficient: < 0.1 ppm/V
• Non inductive: < 0.08 µH
• Non hot spot design
• Thermal EMF: 0.05 µV/°C typical
• Terminal finishes available: lead (Pb)-free or tin/lead alloy
• Any value available within resistance range (e.g. 1K234)
• Compliant to RoHS directive 2002/95/EC
