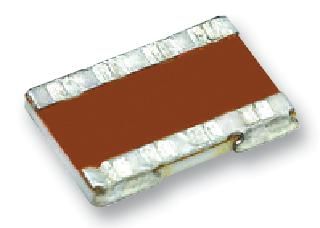

Y08500R10000F9R
SMD Current Sense Resistor, 100 Milliohm, ± 1%, 500 mW, 2516 [6440 Metric], Metal Foil
Click image to enlarge
Manufacturer:VPG Foil Resistors
Product Category:
Resistors, Fixed Resistors, Surface Mount Current Sense Resistors
Avnet Manufacturer Part #: Y08500R10000F9R
-
RoHS 10 Compliant -
Tariff Charges
- Temperature coefficient of resistance (TCR): ± 2.0 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref.)
- Resistance range: 0.01 O to 10 O
- Tolerance: to ± 0.1 %
- Load life stability: ± 0.02 % at 70 °C, 2000 h at rated power
- Electrostatic discharge (ESD) up to 25 000 V
- Short time overload = 0.005 %
- Non inductive, non capacitive design
- Power rating: 0.5 W at + 70 °C or 5 A, whichever is lower
- Thermal EMF: 0.05 µV/°C typical
- Non hot spot design
- Current noise: < - 40 dB
- Rise time: 1 ns effectively no ringing
- Voltage coefficient: < 0.1 ppm/V
- Non inductive: < 0.08 µH
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.1 ohm | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533210070 |
| Schedule B: | 8533210075 |
Factory Lead Time:
