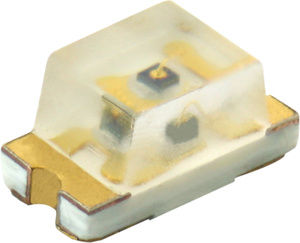

VLMTG1300-GS08
CHIPLED (0603) TRUEGREEN HIGHBRIGHT -e4
Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, LEDs & Lighting, LEDs
Avnet Manufacturer Part #: VLMTG1300-GS08
Secondary Manufacturer Part#: VLMTG1300-GS08
-
RoHS 10 Compliant -
Tariff Charges
The new ChipLED series have been designed in the smallest SMD package. This innovative ChipLED technology opens the way to • smaller products of higher performance • more design in flexibility • enhanced applications
The 0603 LED is an obvious solution for small-scale, high brightness products that are expected to work reliably in an arduous environment.
- True green color LED
- Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.8 mm (L x W x H)
- High reliability PCB based
- Wavelength (465 to 475) nm (blue), typ. 525 nm (true green), typ. 571 nm (yellow green), (584.5 to 597) nm (yellow), typ. 605 nm (soft orange), typ. 631 nm (super red)
- InGaN blue available with protection diode, device type VLMB1310 with HBM 8000 V
- AllnGaP and InGaN technology
- Viewing angle: Extremely wide 130°
- Grouping parameter: Luminous intensity, wavelength, VF
- Available in 8 mm tape on 7" diameter reel
- Compatible to IR reflow soldering
- Preconditioning according to JEDEC level 3
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| True Green | ||
| 525 nm | ||
| 450 mcd | ||
| Matte Tin | ||
| InGaN | ||
| 260 °C | ||
| 76 mW | ||
| Surface Mount | ||
| MSL 2A - 4 weeks | ||
| -20 to 80 °C | ||
| 1.6 x 0.8 x 0.8 mm mm | ||
| 5 V | ||
| Chip LED |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541410000 |
| Schedule B: | 8541410000 |
