VLMS3100-GS08

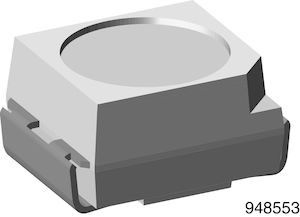

This device has been designed for applications requiring narrow brightness and color selection. The package of this device is the PLCC-2. It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy.

• SMD LED with exceptional brightness
• Luminous intensity categorized
• Compatible with automatic placement equipment
• EIA and ICE standard package
• Compatible with infrared, vapor phase and wave solder processes according to CECC
• Available in 8 mm tape
• Low profile package
• Non-diffused lens: excellent for coupling to light pipes and backlighting
• Low power consumption
• Luminous intensity ratio in one packaging unit IVmax./IVmin. = 1.6
• Preconditioning according to JEDEC® level 2a
• ESD-withstand voltage: up to 1 kV according to JESD22-A114-B
• AEC-Q101 qualified
• Luminous Intensity: 7.1 mcd
