VBUS053CZ-HAF-G-08
ESD Protection Device, 45 V, LLP75, 7 Pins, 28 V, 40 pF

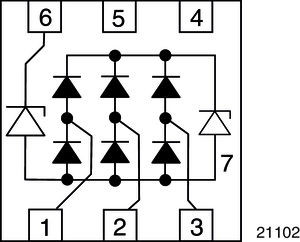

Click image to enlarge
Manufacturer:Vishay
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: VBUS053CZ-HAF-G-08
Secondary Manufacturer Part#: VBUS053CZ-HAF-G-08
-
RoHS 10 Compliant -
Tariff Charges
- Ultra compact LLP75-7L package
- Low package height < 0.6 mm
- 3-line USB ESD-protection with max. working range = 5.5 V
- VBUS-protection with 28 V working range
- Low leakage current
- Low load capacitance CD = 0.7 pF
- ESD-protection to IEC 61000-4-2 ± 15 kV contact discharge ± 15 kV air discharge
- Surge current acc. IEC 61000-4-5 IPP > 3 A
- e4 - precious metal (e.g. Ag, Au, NiPd, NiPdAu) (no Sn)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 32 V | ||
| 40 pF | ||
| 45 V | ||
| LLP75 | ||
| Unidirectional | ||
| Surface Mount | ||
| 3 | ||
| 7 | ||
| 3 | ||
| 125 °C | ||
| -40 °C | ||
| 28 V | ||
| 156 W | ||
| 100 nA | ||
| 28 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
