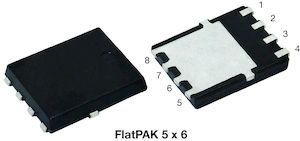

V15KM120CHM3/H

Name: V15KM120CHM3/H
Brand: Vishay
SKU: V15KM120CHM3/H
Availability: InStock

Click image to enlarge

Manufacturer:Vishay

Product Category: Discretes, Diodes & Rectifiers, Schottky Rectifiers

Avnet Manufacturer Part #: V15KM120CHM3/H

Secondary Manufacturer Part#: V15KM120CHM3/H

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	15
	Forward Voltage Max	0.83@7.5A
	No. of Pins	8
	Operating Temperature Max	175 °C
	Repetitive Peak Reverse Voltage	120

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541100080
Schedule B:	8541100080

In Stock : 0

Additional inventory

Factory Lead Time: 42 Weeks

Price for: Each

Quantity:

Min:3000 Mult:1500

USD $:

3000+

$0.43875

6000+

$0.42165

12000+

$0.40456

24000+

$0.38746

48000+

$0.38034
