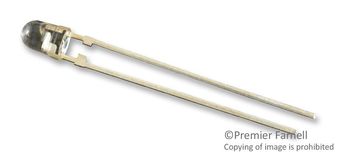

TEPT4400
Ambient Light Sensor Phototransistor Chip Silicon 570nm 2-Pin T-1
Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, Infrared - IR Components, Phototransistors
Avnet Manufacturer Part #: TEPT4400
Secondary Manufacturer Part#: TEPT4400
-
RoHS 10 Compliant -
Tariff Charges
The TEPT4400 from Vishay is a leaded silicon NPN epitaxial planar phototransistor in a T-1 package. This ambient light sensor is sensitive to visible light much like the human eye and has peak sensitivity at 570nm. Ambient light sensor are widely used to control the display of backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on/off lighting operation and replacement of CdS photoresistors.
- High photo sensitivity
- Angle of half sensitivity is ±30°
- Typical wavelength of 570nm
- Power dissipation of 100mW
- Operating temperature range from -40°C to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 3 mm | ||
| 260 | ||
| Through Hole | ||
| -40 to 85 °C | ||
| 2T-1 | ||
| 570 nm | ||
| 2 | ||
| 3.2 x 3.2 x 4.5 mm | ||
| Industrial | ||
| T-1 | ||
| Top View |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541498000 |
| Schedule B: | 8541498000 |
Factory Lead Time:
