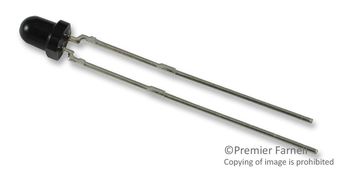

TEFT4300
Phototransistor IR Chip Silicon 925nm 2-Pin T-1
Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, Infrared - IR Components, Phototransistors
Avnet Manufacturer Part #: TEFT4300
Secondary Manufacturer Part#: TEFT4300
-
RoHS 10 Compliant -
Tariff Charges
The TEFT4300 from Vishay is a leaded silicon NPN phototransistor with high radiant sensitivity in black T-1(3mm) package with daylight blocking filter. Typical applications include optical switches, counters and sorters, interrupters, encoders and position sensors.
- Fast response times
- Daylight blocking filter matched with 940nm emitters
- Angle of half sensitivity is ± 30°
- Typical wavelength of 925nm
- Power dissipation of 100mW
- Operating temperature range from -40°C to 100°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 60 | ||
| Tin-Silver | ||
| 3 mm | ||
| Domed | ||
| 260 | ||
| 50 mA | ||
| 200 nA | ||
| 5 V | ||
| Through Hole | ||
| -40 to 100 °C | ||
| 2T-1 | ||
| 925 nm | ||
| 2 | ||
| NPN | ||
| 3.2 x 3.9 x 4.5 mm | ||
| T-1 | ||
| IR Chip | ||
| Top View |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541498000 |
| Schedule B: | 8541498000 |
