SIP12109DMP-T1-GE4
DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5 V-15 Vin, 600mV-5.5Vout, 4Aout, QFN-16

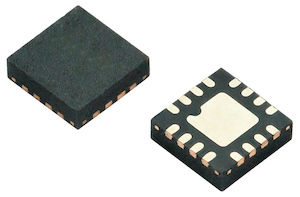

Click image to enlarge
Manufacturer:Vishay
Product Category:
Power Management, Voltage Regulators, DC / DC Switching Regulators
Avnet Manufacturer Part #: SIP12109DMP-T1-GE4
Secondary Manufacturer Part#: SIP12109DMP-T1-GE4
-
RoHS 10 Compliant -
Tariff Charges
The SiP12109 is a high frequency current-mode constant on-time (CM-COT) synchronous buck regulator with integrated high-side and low-side power MOSFETs. Its power stage is capable of supplying 4 A continuous current at 1.5 MHz switching frequency. This regulator produces an adjustable output voltage down to 0.6 V from 4.5 V to 15 V input rail to accommodate a variety of applications, including computing, consumer electronics, telecom, and industrial.
- 4.5 V to 15 V input voltage
- Adjustable output voltage down to 0.6 V
- 4 A continuous output current
- Selectable switching frequency from 400 kHz to 1.5 MHz with an external resistor
- 95 % peak efficiency
- Stable with any capacitor. No external ESR network required
- Ultrafast transient response
- Power saving scheme for increased light load efficiency
- ± 1 % accuracy of VOUT setting
- Cycle-by-cycle current limit
- Fully protected with OTP, SCP, UVP, OVP
- PGOOD Indicator
- -40 °C to +125 °C operating junction temperature
- Output voltage tracking
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 95 % | ||
| 15 V | ||
| 4.5 V | ||
| 15 V | ||
| 4.5 V | ||
| Surface Mount | ||
| 1 | ||
| 16 | ||
| 1 | ||
| 4.5, 5.5 V | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 4 A | ||
| Adjustable | ||
| 0.6 to 5.5 V | ||
| 16QFN | ||
| 16 | ||
| 3 x 3 x 0.85 | ||
| Synchronous Buck Regulator | ||
| Industrial | ||
| QFN | ||
| 400 to 1500 kHz | ||
| 1.5 MHz | ||
| Synchronous Buck (Step Down) |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
