MAL210117473E3
Electrolytic Capacitor, 47000 uF, 40 V, ± 20%, Screw, 10000 hours @ 85°C, Polar, 101 PHR-ST Series
Click image to enlarge
Manufacturer:Vishay
Product Category:
Capacitors, Aluminum Electrolytic Capacitors, Snap-In/Screw Terminal Aluminum Electrolytic Capacitors
Avnet Manufacturer Part #: MAL210117473E3
Secondary Manufacturer Part#: MAL210117473E3
-
RoHS 10 Compliant -
Tariff Charges

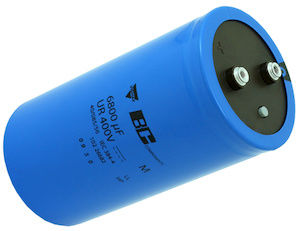

The MAL210117473E3 is an Aluminum Electrolytic Capacitor with screw terminals, cylindrical aluminum case and a blue sleeve insulation. The 101 PHR-ST series electrolytic capacitor features high ripple current, pressure relief in the sealing and low ESR. Suitable for buffering and filtering.
- Polarized aluminum electrolytic capacitors, non-solid electrolyte
- Long useful life
- 10mO at 20kHz Maximum impedance
- 3.76mA (after 5 minutes) Maximum leakage current
- 14.6A at 100Hz/85°C Rated RMS ripple current
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 47000 uF | ||
| ± 20% | ||
| Screw | ||
| 0.012 Ohm | ||
| 22.2 mm | ||
| 10000 hours @ 85°C | ||
| 85 °C | ||
| -40 °C | ||
| Polar | ||
| 50 mm | ||
| 80 mm | ||
| 14.6 A | ||
| 40 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8532220055 |
| Schedule B: | 8532220055 |
Factory Lead Time:
