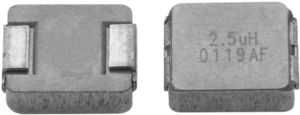

IHLP2525AHER4R7M01
Power Inductor (SMD), 4.7 µH, 3 A, Shielded, 8 A, IHLP-2525AH-01 Series
Click image to enlarge
Manufacturer:Vishay
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: IHLP2525AHER4R7M01
Secondary Manufacturer Part#: IHLP2525AHER4R7M01
-
RoHS 10 Compliant -
Tariff Charges
The IHLP-2525AH-01 series from Vishay are surface mount low profile, high current inductor. The inductance value ranging from 0.1µH to 4.7µH. Typical applications include PDA / notebook / desktop / server, high current POL converters, power supplies, Battery powered devices, DC/DC converters.
- EIA 2525(6363 metric) standard chip size
- ±20% tolerance
- Frequency range up to 5MHz
- Shielded construction
- Lowest DCR/µH, in this package size
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to composite construction
- Operating temperature range from -55°C to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.078 Ohm | ||
| 4.7 uH | ||
| 20 | ||
| 2525 | ||
| Shielded | ||
| 1.8 mm | ||
| 6.47 mm | ||
| IHLP-2525AH-01 Series | ||
| 6.47 mm | ||
| 3 A | ||
| 8 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
