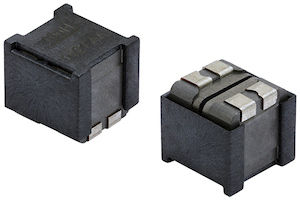

IHLD3232HBER330M5A
IHLD-3232HB-5A 33 20% ER E3
Click image to enlarge
Manufacturer:Vishay
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: IHLD3232HBER330M5A
Secondary Manufacturer Part#: IHLD3232HBER330M5A
-
RoHS 10 Compliant -
Tariff Charges
The IHLD3232HB series from Vishay are automotive grade, surface mount low profile high current dual inductors. Optimal design of these shielded inductors provides high quality sound with low distortion and ultra low buzz noise due to composite construction.
- EIA 3232 chip size
- Automotive grade AEC-Q200 qualified
- Inductance value range from 5µH to 33µH
- Saturation current range from 2.9A to 8.5A
- DCR value range from 27.3mohm to 159.43mohm
- Frequency range up to 1MHz
- Low coupling for minimal cross talk between inductors & lowest DCR/µH in this package
- Handles high transient current without saturation
- Operating temperature range from -55°C to 155°C
- Minimizes board space requirements
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 0.1594 Ohm | ||
| 33 uH | ||
| ±20% | ||
| 3232 | ||
| Shielded | ||
| 9.14 mm | ||
| 9.75 mm | ||
| IHLD-3232HB-5A Series | ||
| 9.62 mm | ||
| 2.4 A | ||
| 2.9 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
