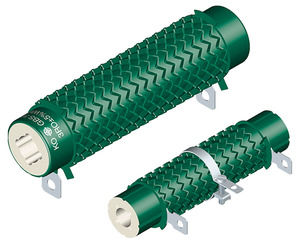

GBS309603240JLX000
GBS30/330 110 24R 5%
Click image to enlarge
Manufacturer:Vishay
Product Category:
Resistors, Panel/Chassis Mount Resistors
Avnet Manufacturer Part #: GBS309603240JLX000
Secondary Manufacturer Part#: GBS309603240JLX000
-
RoHS 10 Compliant -
Tariff Charges
The GBS series, with completely welded construction, is the perfect choice for high continuous power dissipation up to 1000 W and is offered with an optional adjustable type. The components of this series are well suited for harsh environments and exhi
- High power rating up to 1000 W
- Excellent pulse load capability
- Low ohmic values
- Adjustable type (E) available
- Corrugated ribbon construction aids rapid cooling
- Non-flammable and enhanced humidity protection<
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 350 °C | ||
| -55 °C | ||
| 450 W | ||
| 37 mm | ||
| GBS Series | ||
| 330 | ||
| 24 | ||
| 5 | ||
| Bolt-On | ||
| Wirewound | ||
| Solder Lug | ||
| 100, 180 ppm/°C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533290000 |
| Schedule B: | 8533290000 |
Factory Lead Time:
