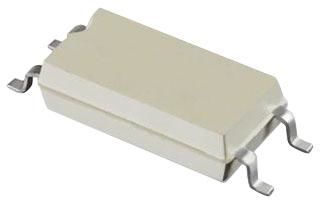

TLP3914(TP15,F)
Optocoupler DC-IN 1-CH Photovoltaic DC-OUT 4-Pin SSOP T/R
Click image to enlarge
Manufacturer:Toshiba
Product Category:
Optoelectronics, OptoCouplers, Transistor & Photovoltaic Output PhotoCouplers
Avnet Manufacturer Part #: TLP3914(TP15,F)
Secondary Manufacturer Part#: TLP3914(TP15,F)
-
RoHS 10 Compliant -
Tariff Charges
The SSOP coupler TLP3914 is a small outline coupler, suitable for surface mount assembly.
The TLP3914 consists of a GaAlAs light emitting diode, optically coupled to a series connected photo diode array which is suitable for MOS FET gate drive.
- 4 pin SSOP (SSOP4): 1.8 mm high, 1.27 mm pitch
- Open Voltage: 7 V (min)
- Short Current: 20 µA (min)
- Isolation Voltage: 1500 VRMS (min)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 30 mA | ||
| 260 | ||
| 1500 Vrms | ||
| Surface Mount | ||
| 1 | ||
| -25 to 65 °C | ||
| DC | ||
| 4SSOP | ||
| 4 | ||
| 3.8 x 2.04 x 1.8 mm | ||
| SSOP |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541498000 |
| Schedule B: | 8541498000 |
Factory Lead Time:
