SG1-80
Compact Mid-Range String Pot

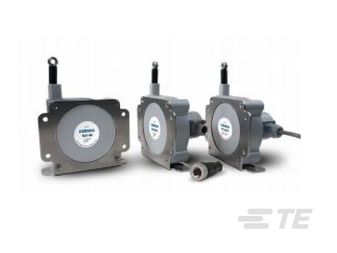

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Sensors & Transducers, Motion & Position Sensors, Cable Actuated Position Sensors
Avnet Manufacturer Part #: SG1-80
Secondary Manufacturer Part#: SG1-80
-
RoHS 10 Compliant -
Tariff Charges
The SG1-80 provides absolute linear position up to a 10-ft. stroke range. Constructed with a rugged polycarbonate body, this model is available in an 80-inch or 120-inch stroke range and offers optional IP67 protection for wet or outdoor installations and an M12 connector for easy installation.
The SG1-80 uses a precision high-cycle plastic hybrid potentiometer and an extremely durable spring-loaded stainless steel measuring cable to provide an accurate reliable position feedback signal over the entire stroke. With it’s slim design and versatile mounting bracket, the SG1-80 has been designed to fit into spaces no other measurement device can.
- Compact Mid-Range String Pot
- 80-inch stroke range
- Solder terminal connection
- IP67 environments
- Mounting bracket included
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 9031808085 |
| Schedule B: | 9031808060 |
Factory Lead Time:
