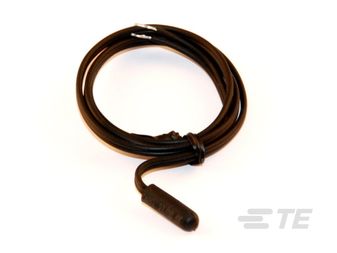

GA10K3435STM010
TPE OM Probe Analog Output 10000Ohm 3435K 24AWG Cable Mount 1m
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Sensors & Transducers, Temperature Sensors & Transducers, Thermistors
Avnet Manufacturer Part #: GA10K3435STM010
Secondary Manufacturer Part#: 77AH7818
-
RoHS 10 Compliant -
Tariff Charges
GA10K3435STM010 is a TPE overmolded probe with probe head dimensions of Ø 5 x 20mm(1meter). This thermistor assembly consists of a NTC thermistor soldered to a single insulated TPE extension cable. The sensor and the extension cable are molded together as one hot vulcanized unit to give a high degree of protection against water/moisture ingress. Typical applications include building management applications, heater control and air conditioning.
- Resistance is 10Kohm at 25°C with ±1%
- Ideal for HVAC applications
- 24AWG Zipcord TPE cable
- IP 67 rated
- Insulation resistance 100Mohm at 500VDC
- Temperature range from -35°C to +105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 3435K | ||
| ± 1% | ||
| 980 | ||
| Free Hanging | ||
| 105 °C | ||
| -35 °C | ||
| 5 | ||
| TPE (Thermoplastic Elastomer) | ||
| 44900 Series | ||
| 15 | ||
| Probe, Cylindrical |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533408070 |
| Schedule B: | 8533400080 |
Factory Lead Time:
