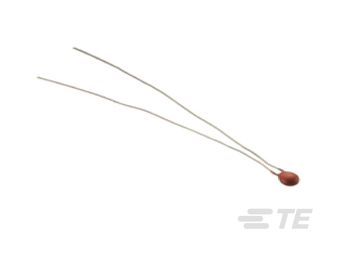

GA100K6A1B
NTC Thermistor, Bead/Radial Leaded, 100kohm, 4261K, Free Hanging, -40°C to 125°C, BetaCURVE I Series
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Sensors & Transducers, Temperature Sensors & Transducers, Thermistors
Avnet Manufacturer Part #: GA100K6A1B
Secondary Manufacturer Part#: GA100K6A1B
-
RoHS 10 Compliant -
Tariff Charges
GA100K6A1B is a 100K6A1 series 1 BetaCURVE chip thermistor. It is soldered to 32AWG alloy 180 leads and encapsulated in Stycast epoxy resin. Typical applications include temperature sensing, control and compensation, tight tolerance instrumentation, assembly into probes for a wide variety of applications and general instrumentation applications.
- Resistance is 100Kohm at 25°C with 0.2°C
- Thermally conductive epoxy coating
- Ø 2.4mm maximum diameter
- Alloy lead wires for reduced thermal conductivity
- Interchangeability
- Proven stability and reliability, rapid time response
- Temperature range from -40°C to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 4261K | ||
| ± 0.5% | ||
| 76 | ||
| Through Hole | ||
| 125 °C | ||
| -40 °C | ||
| BetaCURVE Series I | ||
| 1 | ||
| Bead, Radial Leaded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8533408070 |
| Schedule B: | 8533400080 |
