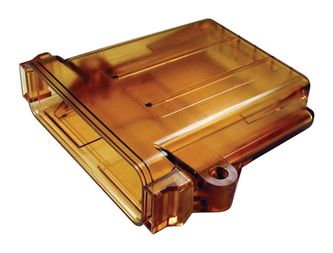

EEC-325X4B-E016
Enclosure Connector Enclosure Glass Filled Polyamide 66 Natural
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Enclosures, Racks & Cabinets, Enclosures
Avnet Manufacturer Part #: EEC-325X4B-E016
Secondary Manufacturer Part#: EEC-325X4B-E016
-
RoHS 10 Compliant -
Tariff Charges
The EEC-325X4B-E016 is a Compact PCB Enclosure that accept snap-in headers. The enclosure features a through hole mounting flange on each side, as well as optional venting. Designed with space to accommodate one or more DT or DTM series interfaces, the headers feature 90° pins. A radial flange seal provides environmental sealing to the enclosure. The header mates with the DT and DTM standard plugs. Thermoplastic housing without vent hole. Moulded in clear Ultem® material.
- Board size - 3.25 x 4"
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Natural | ||
| Glass Filled Polyamide 66 | ||
| -55 to 125 °C | ||
| 118.8 x 114 x 34.75 mm | ||
| Connector Enclosure |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907080 |
Factory Lead Time:
