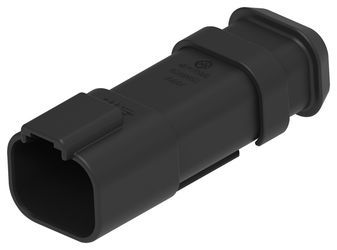

DT04-4P-CE09
Automotive Connector Housing, DT, Receptacle, 4 Ways, DT Series Pin Contacts, Thermoplastic Body
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: DT04-4P-CE09
Secondary Manufacturer Part#: DT04-4P-CE09
-
RoHS 10 Compliant -
Tariff Charges
The DT044P-CE09 is a 4-way black thin wall Receptacle Housing, made of PA GF, suitable for male terminals. This DT series connector housing to meet the application requirements where wires are to be protected. This will accept shaped boot/sleeve or shrink tubing.
- 2, 3, 4, 6, 8 and 12 cavity arrangements
- Available in in-line, flange or PCB mount options
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
- Available in both plug and receptacle
- Accepts Thin Wall Wire: 1.35 - 3.05mm wire insulation diameter
- -55 to +125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| -55 to 125 °C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907080 |
Factory Lead Time:
