9-160463-5

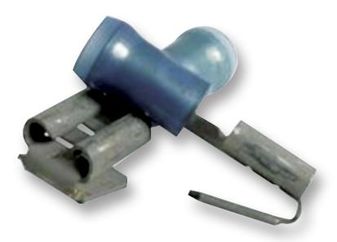

Quick Disconnect Terminal 13-17AWG PIN/RCP 23.41mm 7.62mm Tin Loose Piece
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Quick Disconnect Terminals
Avnet Manufacturer Part #: 9-160463-5
Secondary Manufacturer Part#: 9-160463-5
-
RoHS 10 Compliant -
Tariff Charges
- FASTON receptacle and tab combination
- 1-2.5 mm² wire size range
- Operating temperature: max. 105°C
- Operating voltage: max. 300 V
- Insulating sleeve: Nylon, according to UL 94V-2
- Contact body and sleeve: Electrolytic copper, tin-plated
- For tabs 6.3 x 0.8 mm
- Color: Blue
- Available in bulk packs
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Phosphor Bronze | ||
| Tin | ||
| Tin | ||
| 7.62 mm | ||
| 23.41 x 7.62 mm | ||
| 23.41 mm | ||
| 5.14 mm² | ||
| 17 to 13, 17 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
