9-160313-5

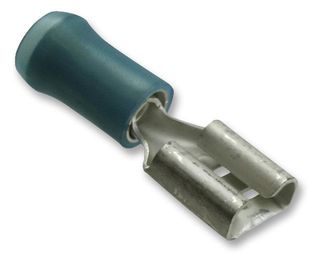

Quick Disconnect Terminal, PIDG FASTON, Female Quick Disconnect, 6.35mm x 0.81mm, 0.25" x 0.032"""
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Terminals, Quick Disconnect Terminals
Avnet Manufacturer Part #: 9-160313-5
Secondary Manufacturer Part#: 9-160313-5
-
RoHS 10 Compliant -
Tariff Charges
The PIDG FASTON series Receptacle Contact available in series 250 (6.35mm (0.250 inch)), 205 (5.21mm (0.205 inch)), 187 (4.75mm (0.187 inch)) and 110 (2.79 mm (0.110 inch)). The series designator corresponds to the width of the contact mating end (in thousands of an inch). The contact insulation is colour coded to provide a visual reference applicable to the wire size range suitable for the contact. The serrations inside the wire barrel provide maximum contact and tensile strength after crimping.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Phosphor Bronze | ||
| Blue | ||
| 1 to 2.6 mm² | ||
| Nylon | ||
| Tin | ||
| Tin | ||
| 7.6 mm | ||
| 23.7 x 7.6 mm | ||
| 23.7 mm | ||
| 160313 | ||
| 5.14 mm² | ||
| Crimp |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
