86453-000

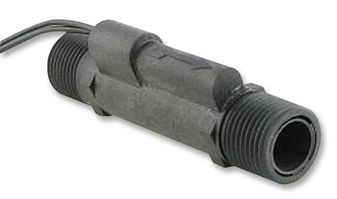

Flow Sensor, 0 to 0.6 l/min, 3/8" BSP Port Size, SPST-NO, 250 Vac, 1 A, Noryl, FCS Series"
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Sensors & Transducers, Flow Sensors, Liquid Flow Sensors
Avnet Manufacturer Part #: 86453-000
Secondary Manufacturer Part#: 86453-000
-
RoHS 10 Compliant -
Tariff Charges
FCS-01 is a FCS series, flow sensor. The3/8" BSP Male threaded fittings suitable for hot and cold potable water reed switch reliability file E125629 meets UL 94-HB flammability rating food grade material. The design allows for sensing in the line flow of "
- Operate flow rate (L/min) is 0.6 +/- 0.5, minimum pressure drop
- Operates from a small head of water, mount in any axis
- Suitable for water and air flow switching,3/8" BSP Male threaded fittings
- Suitable for hot and cold pota"
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 9026906000 |
| Schedule B: | 9026900000 |
Factory Lead Time:
