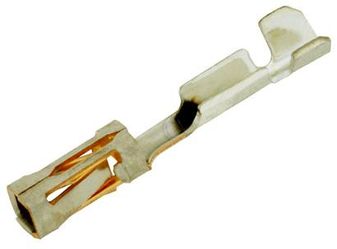

794606-1
Contact, Micro MATE-N-LOK, Socket, Crimp, 20 AWG, Tin Plated Contacts, Micro MATE-N-LOK Connectors
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 794606-1
Secondary Manufacturer Part#: 794606-1
-
RoHS 10 Compliant -
Tariff Charges
The 794606-1 is a socket Crimp Contact made of phosphor bronze with tin plated finish. It accepts 24 to 20AWG wire size. This contact is suitable for Micro MATE-N-LOK connectors.
- Locking lance contact retention
- 250VAC/DC Operating voltage
- 5A Contact current rating
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.204 to 0.517 mm² | ||
| Power Connector | ||
| Brass | ||
| Tin | ||
| 20 | ||
| Power | ||
| Pin | ||
| Tin | ||
| 20 mOhm | ||
| 5 A | ||
| Cable Mount | ||
| -40 to 105 °C | ||
| 4 um | ||
| 13.73 x 2.67 x 1.93 mm mm | ||
| HDE-20 | ||
| No | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
