Maximum current rating of Commercial MATE-N-LOK connectors is limited by the maximum operating temperature of the housings which is 105°C including the temperature rise of the contacts which is a maximum of 30°C. There are several variables which have a direct effect on this maximum current-carrying capability for a given connector and must be considered for each application.

Larger diameter wire will carry more current since it has less internal resistance to current flow and thus generates less heat. Longer wire lengths also enhance current-carrying capabilities since the wire conducts heat away from the connector.

In general, the more circuits in a connector, the less current can be carried.

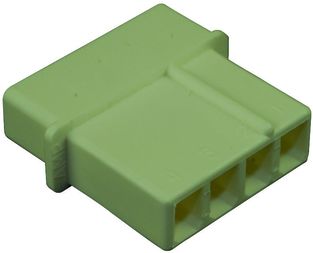

• 4 position commercial MATE-N-LOK free hanging pin housing (cap) with 0.2 [5.08mm] Centerline spacing
• Fully polarized nylon housings
• Easy cavity identification
• Locking devices are integral part of design. Connector halves will hold together under severe conditions of vibration and shock
• Built-in contact stabilization and self-aligning features
• Hot side egg-crate design for safety
• Precision molded to exacting tolerances
• Contacts accept a wire size range of 30-14 AWG [.05-2.0 mm²]
• Keying plug available
• “Clean” design contact - no sharp projections to impede insertion or damage housings
• Low insertion/extraction forces
