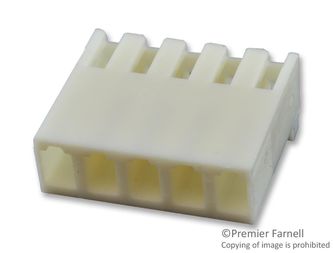

770849-5
Conn Housing Wire to Board Receptacle 5 POS 3.96mm ST Cable Mount Bag/Box
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 770849-5
Secondary Manufacturer Part#: 770849-5
-
RoHS 10 Compliant -
Tariff Charges
- Rugged wire-to-board interconnection to mate with .045 square or round post headers or staked posts on .156 center
- Standard Connectors accept wire range of 18–24 AWG [0.9–0.2 mm ] and LID Connectors accept wire range of 18–24 AWG [0.9–0.2 mm ] and a limited 16 AWG [1.29–1.42 mm ] (2550–2800 CMA)
- Two-piece interconnection system (connector/header)
- Housing made of flame retardant nylon
- Available in 1- through 24-position connector configurations
- Connectors are end-to-end stackable
- Wire-to-board system offers polarization with friction lock for positive mating
- Meets the material requirements of Table 23.1 of UL1410 Standard for High-Voltage Television Receivers and Video Productions
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Nylon | ||
| Straight | ||
| Receptacle | ||
| Natural | ||
| 6.5 A | ||
| Cable Mount | ||
| 5 | ||
| 1 | ||
| -55 to 105 to 105 °C | ||
| 3.96 mm | ||
| 16.76 mm | ||
| 19.74 x 16.76 x 6.35 mm | ||
| 6.35 mm | ||
| 19.74 mm | ||
| 770849 | ||
| Wire to Board | ||
| 250 Vac | ||
| 30 to 18, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
