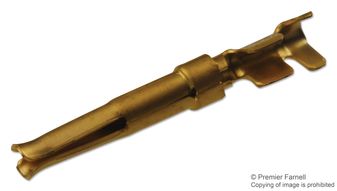

66504-9
D Sub Contact, HDP-20 Series Connectors, Socket, Brass, Gold Plated Contacts, 20 AWG, 24 AWG
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 66504-9
Secondary Manufacturer Part#: 25C1826
-
RoHS 10 Compliant -
Tariff Charges
The 66504-9 from TE Connectivity is a D sub socket contact with size?20. This contact is used with AMPLIMITE HDP-20 and CPC connectors.
- Made of gold plated phosphor bronze
- Pin diameter of 1.02mm?(0.04inch)
- Wire range from 0.2mm² to 0.6mm²?(24AWG to 20AWG)
- Wire insulation diameter of 1.27mm to 1.52mm?(0.05inch to 0.06inch)
- Crimp snap-in contact style
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Phosphor Bronze | ||
| Gold | ||
| 20 | ||
| Receptacle | ||
| Gold | ||
| Cable Mount | ||
| 14.1 x 2.67 mm | ||
| HDP-20 | ||
| No | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
