66331-8
Circular Connector Contact, Multimate Type III+, Socket, Crimp, 20 AWG, 24 AWG
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 66331-8
Secondary Manufacturer Part#: 66331-8
-
RoHS 10 Compliant -
Tariff Charges

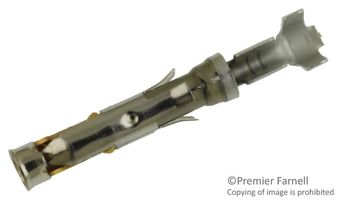

The 66331-8 is a crimp Socket Contact made up of gold-plated brass base with gold-flash termination area plating. It is suitable for use with the signal circuit applications and applies to wire/cable.
- 13A Current rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Brass | ||
| Gold | ||
| 16 | ||
| Receptacle | ||
| Gold | ||
| Cable Mount | ||
| 3.68 x 3.05 mm | ||
| Type III+ | ||
| Crimp | ||
| 24 to 20, 24 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Ships
in 1 bus. day
